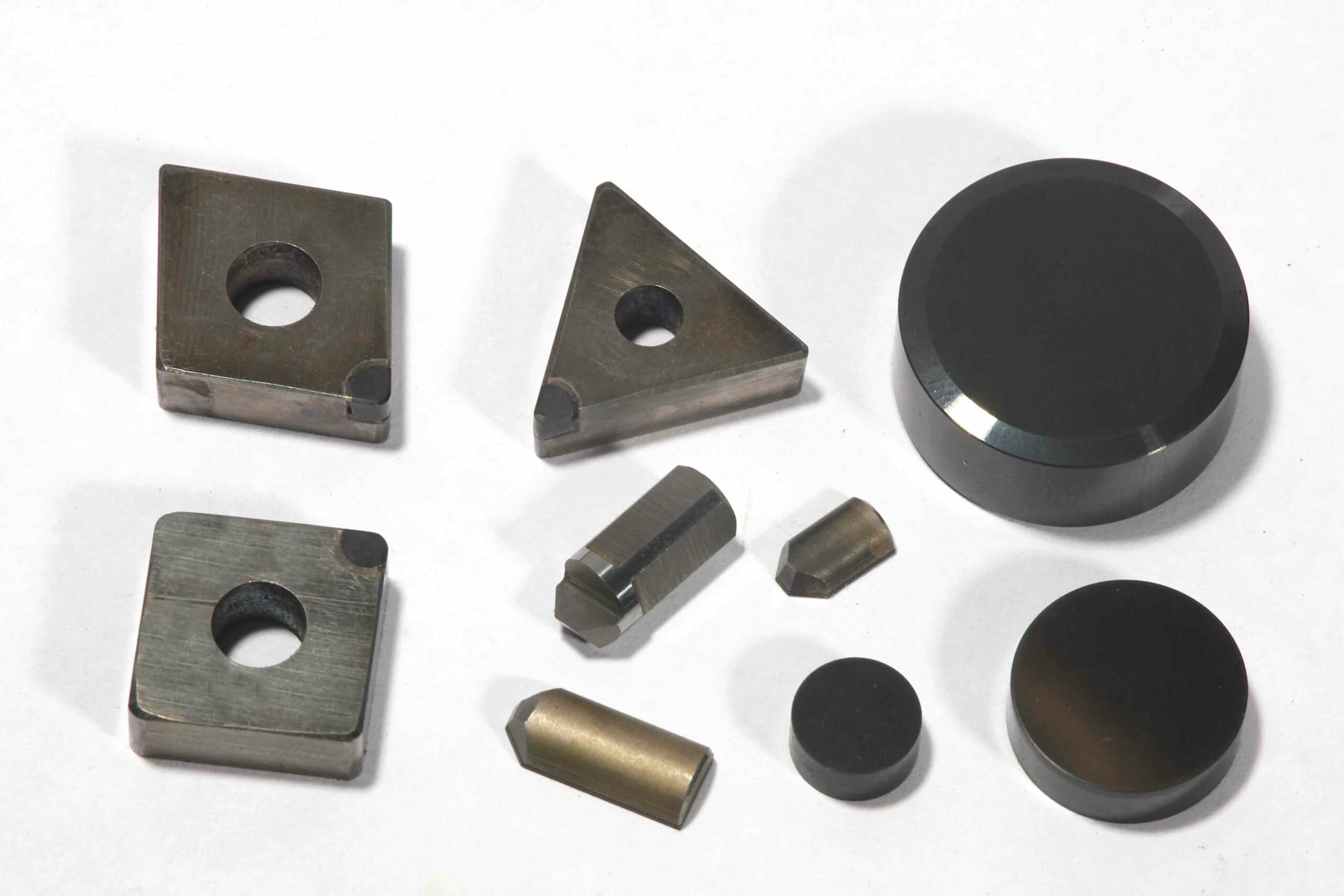

PCD & PCBN inserts and cutting tools

Along with the improvements in production processes and difficulties that arise from machining new and advanced materials, there is an increasing demand for new forms of cutting tools that go beyond the performance of conventional tools made of high speed steel, tungsten carbides, cermets, and ceramics.

Polycrystalline Diamond (PCD) and Polycrystalline Cubic Boron Nitride (PCBN) are superabrasive products that are produced by sintering together selected diamond or CBN particles with a metal matrix using very sophisticated high- temperature and high- pressure technology. PCD, PCBN are by their nature high in hardness and more abrasive and shock resistant in all directions as compared to natural diamond. These wear resistant materials are combined into a cutting tool that provides outstanding life and excellent quality of cut.

PCD allows high speed machining and longer tool life. Higher wear resistance affords consistant high precision and accuracy. Ideally used for machining aluminium, composite metals, nonferrous metals.

PCBN is suitable for difficult to machine materials such as heat-treated hardened metals and alloys, sintered metals. Used for turning hardened ferrous or super alloy materials. Provide high precision and excellent surface finishing.

Inquire

INQUIRE FORM

Category:
Product Description
GENERAL ENGINEERING MILLING CUTTER
4A2 FACE GRINDING
DIAMOND
D
(mm)
W
(mm)
X
(mm)
H
(mm)
M
(mm)
J
(mm)
100 5 2 20 6 66
125 5 2 20 7 84
5 2 20 7 84
5 2 32 7 84
10 2 20 7 84
150 5 2 32 9 94
5 2 20 9 94
5 2 32 9 94
5 2 32 9 94
3 3,3 20 9 94
175 5 4 32 11 104
CBN
100 5 2 20 6 66
150 5 4 20 9 94
3 3,3 20 9 94
175 5 4 20 11 104
12A2-20¡ FACE GRINDING
DIAMOND
D
(mm)
W
(mm)
X
(mm)
H
(mm)
M
(mm)
K
(mm)
E
(mm)
J
(mm)
125 5 2 20 14 54 8 54
6 4 20 14 54 8 54
6 4 32 14 54 8 54
150 5 2 20 16 68 9 68
5 2 20 16 68 9 68
5 2 32 16 68 9 68
5 3 32 16 68 9 68
5 3 32 16 68 9 68
6 4 32 16 68 9 68
175 5 2 20 18 82 10 82
5 2 32 18 82 10 82
CBN
150 5 4 20 16 68 9 68
6 4 32 16 68 9 68
175 5 4 20 18 82 10 82
12A2 FACE GRINDING
DIAMOND
D
(mm)
W
(mm)
X
(mm)
H
(mm)
M
(mm)
K
(mm)
E
(mm)
J
(mm)
125 5 4 20 19 50 9 73
5 4 20 19 50 9 73
5 4 20 19 50 9 73
5 4 20 18 50 9 73
5 4 20 18 50 9 73
150 5 4 20 20 75 11 95
CBN
125 5 4 20 19 50 9 73
5 4 20 19 50 9 73
5 4 20 19 50 9 73
5 4 20 18 50 9 73
150 5 4 20 20 75 11 95
175 5 4 20 22 75 11 95
12A2-45¡ TOP GRINDING
DIAMOND
D
(mm)
W
(mm)
X
(mm)
H
(mm)
M
(mm)
K
(mm)
E
(mm)
J
(mm)
100 5 2 20 23 54 10 56
6 3 20 20 64 10 62
6 3 20 20 64 10 62
125 6 3 32 23 83 10 81
CBN
100 5 2 20 23 54 10 56
125 6 2 20 23 83 10 81
GENERAL ENGINEERING DIAMOND LAPPING
COMPOUNDS
DIAMOND
COMPOUND PASTE
GRADE
(MICRONS)
COLOUR CONTENTS PK

QTY

ART.
NO.
1/4 GREY 5g 1 69014154990
1/2 LIGHT GREY 5g 1 69014154991
1 IVORY 5g 1 69014154992
3 YELLOW 5g 1 69014154993
6 ORANGE 5g 1 69014154994
9 GREEN 5g 1 69014154995
12 LIGHT BLUE 5g 1 69014154996
15 BLUE 5g 1 69014154997
20 BROWN 5g 1 69014154998
30 RED 5g 1 69014154999
45 CHESTNUT 5g 1 69014155000
60 VIOLET 5g 1 69014155001
