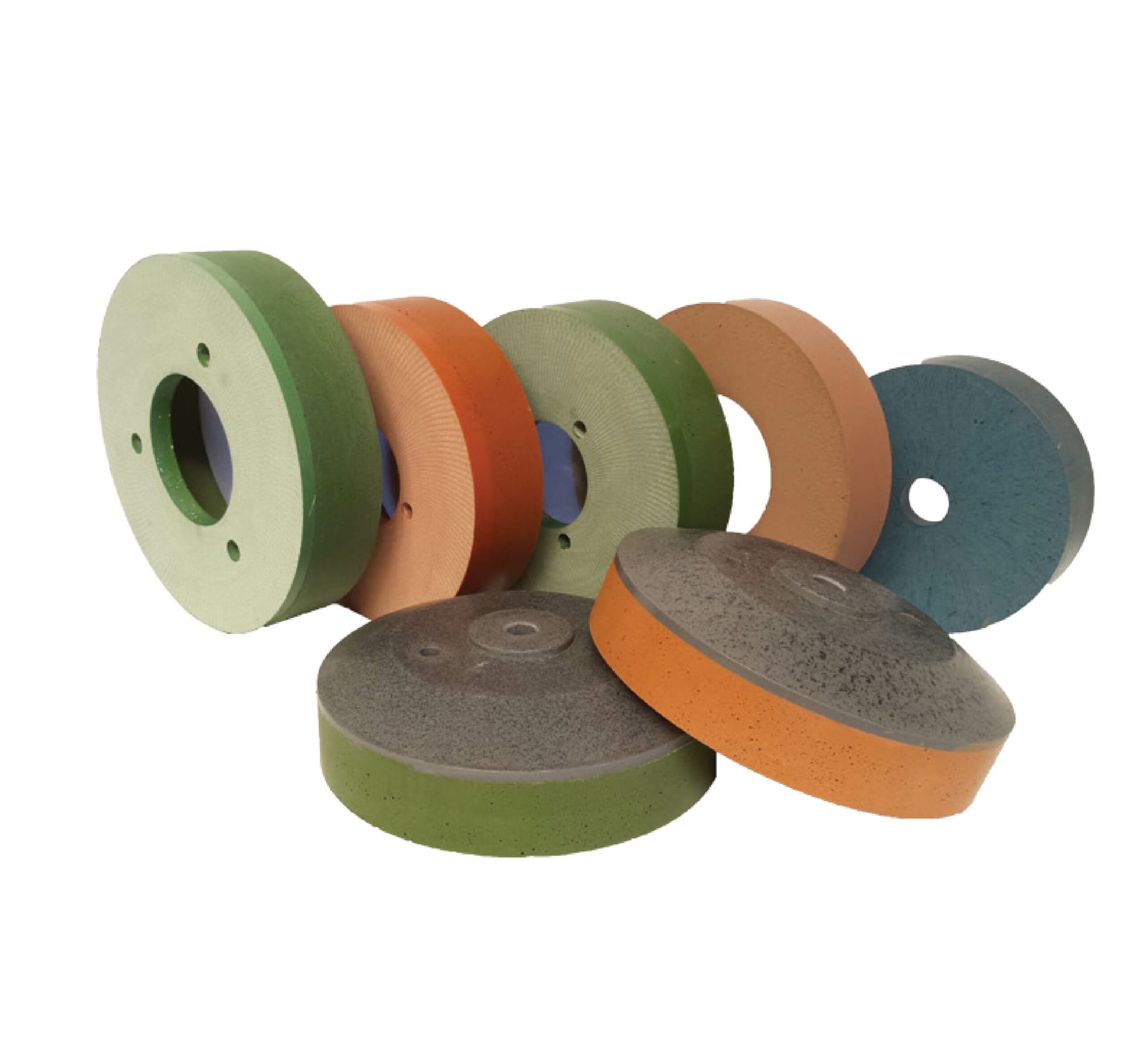

Polishing wheels

Rubber and stone composite wheels are manufactured with a metal, plastic, or a composite mounting plate. bonded to a ring-shaped composition wheel to form a cup configuration.

They are used on straight-line and double edging machines, and allow for high speed processing and best quality, on any glass thickness.

Inquire

INQUIRE FORM

Product Description
TYPE DIA

(mm)

Rim Dimension Type Series Application
Cup wheel – Polish Series 150 Continuous 150 x 40 x 70 Rubber X / 10S Rubber bonded polishing series for all
glass types
Segmented 150 x 40 x 70 Rubber X / 10S Rubber bonded polish series for multi
laminated glass
150 Continuous 150 x 40 x 70 Rubber + cerium L Cerium oxide impregnated rubber bonded
polish wheel
Segmented 150 x 40 x 70 Rubber + cerium L Cerium oxide impregnated rubber bonded
polish wheel
130 Continuous 130 x 35 x 60 Rubber + cerium L / 10S Rubber bonded polish series for arris
/ chamfer polishing
125 Continuous 125 x 35 x 22 Rubber + cerium L / 10S Rubber bonded polish series for arris
/ chamfer polishing
Cup wheel – Bright Polish series 150 Continuous 150 x 30 x 70 Cerium  X3000 / 5000 / 7000 Bright Polishing series for flat edge
and DEG
150 Continuous 150 x 40 x 70 Rare earth  CE-3 Bright Polishing series for flat edge
and DEG
Cup wheels -Stone polish wheel
series
100 Continuous 100 x 12 x 40 Stone  240 – 400 Arris polishing (no diamond wheel pre-grinding needed)
130 Continuous 130 x 12 x 40 Stone  240 – 400 Arris polishing (no diamond wheel
pre-grinding needed)
150 Continuous 150 x 12 x 40 Stone  240 – 400 Arris polishing (no diamond wheel pre-grinding needed) or flat
edge pre-polishing.
Note: Polish wheels are available in 40, 60 and 80 grit in the rubber series. Customised sizes are available.
